Dry spraying equipment

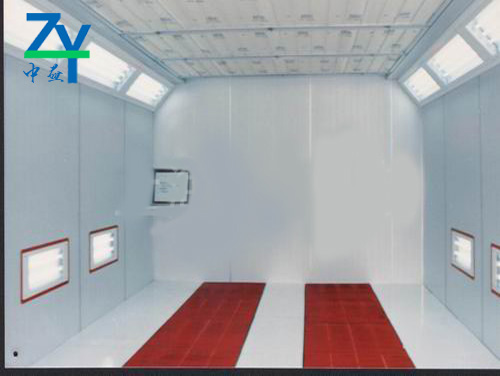

Dry spray painting room (painting room) is a kind of baffle plate, filter screen and other dry filter filter paint fog equipment, ventilation way for transverse ventilation, usually dead end or desktop. Under the function of the fan, the paint fog enters the filter and is adhered and captured, and the paint mist air is removed, and the air duct is arranged outside the workshop.

The utility model has the advantages of simple structure, uniform ventilation and wind pressure, small coating loss and high coating efficiency. Because the water is not used, waste water treatment is not necessary, and the operation cost is low.


2.jpg       Automatic spraying equipment adopts programmable logic controller (PLC), servo controller, programmable man-machine interface (touch screen) and other advanced control components. It is highly efficient and automatic spraying machine equipment.

Characteristic:

The control panel adopts the man-machine interface (Chu Moping), the operation and setting parameters are simple and intuitive, and the parameters of various types of memory can be stored for direct transfer.

The main controller uses a programmable logic controller (PLC).

Spraying manipulator is driven by servo motor, imported screw rod and linear module drive to improve spraying speed and spraying precision.

Mechanical hand screw rod and sliding table adopt imported brand, the highest speed can reach 1000m/s.

The spraying machine adopts new design of internal water oil and gas filtration.

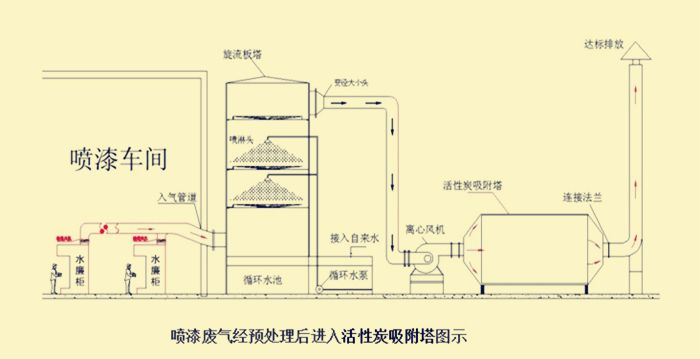

The ventilation system adopts the ventilation at the bottom, the top purification, filtration, blowing, to avoid spraying ink splash, exhaust air after treatment, to reduce pollution to the outside world.

Spraying automatic spraying with imported, two symmetrical installation, automatic rotation.

Oil supply system adopts double diaphragm pump and mixer, etc. it can automatically stir ink and set oil flow. Adaptation: plastic, metal, leather, wood, glass, magnesium alloy and other products (such as computer, TV, laptops, monitors, LCD panel, camera and mobile phone shell, for the workpiece surface coating is better suited to bump).
