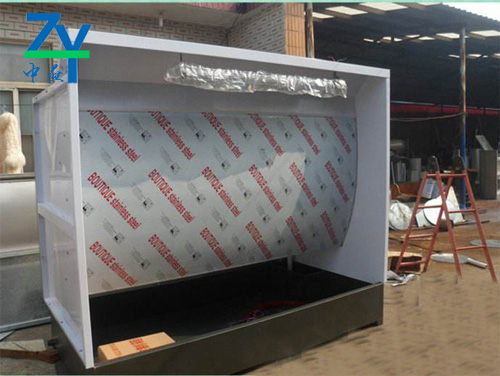

The water curtain spray equipment

The basic principle of water curtain machine:

1 through a water pump, the water tank is pumped to the upper trough, composed of a water tank overflow to the water in water through the water, forming board, paint spray isolation and with water flow to the filter tank.

2, the back of the two washing and water retaining plate will filter the exhaust gas and prevent exhaust smoke outside, and protect the environment.

3, environmental protection principle of pump water rotary spray cabinet: by centrifugal force centrifugal fan of the water tank to form tornado type, the suction of water through the scroll processor back into the tank recycling, waste paint with water back to the water tank, concentrated slag.

Automatic spraying equipment adopts programmable logic controller (PLC), servo controller, programmable man-machine interface (touch screen) and other advanced control components. It is highly efficient and automatic spraying machine equipment.

Characteristic：

The control panel adopts the man-machine interface (Chu Moping), the operation and setting parameters are simple and intuitive, and the parameters of various types of memory can be stored for direct transfer.

The main controller uses a programmable logic controller (PLC).

Spraying manipulator is driven by servo motor, imported screw rod and linear module drive to improve spraying speed and spraying precision.

Mechanical hand screw rod and sliding table adopt imported brand, the highest speed can reach 1000m/s.

The spraying machine adopts new design of internal water oil and gas filtration.

The ventilation system adopts the ventilation at the bottom, the top purification, filtration, blowing, to avoid spraying ink splash, exhaust air after treatment, to reduce pollution to the outside world.

Spraying automatic spraying with imported, two symmetrical installation, automatic rotation.

Oil supply system adopts double diaphragm pump and mixer, etc. it can automatically stir ink and set oil flow. Adaptation: plastic, metal, leather, wood, glass, magnesium alloy and other products (such as computer, TV, laptops, monitors, LCD panel, camera and mobile phone shell, for the workpiece surface coating is better suited to bump).
