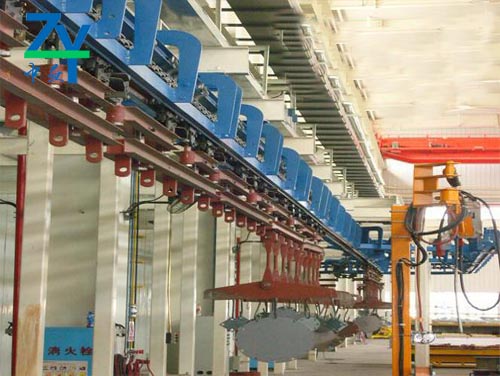

Store suspension conveying equipment

Stacking type suspension conveyor is a new type of mechanical development started in 1980s, mid 80s fast transportation equipment, stacking type suspension conveyor and general suspension conveyor, also has the following advantages.

(1) the carrier car can stop automatically at any position on the line as required, and can start and put into operation at any time as instructed.

(2) when a car is stopped on the line, the subsequent car will stop automatically and then accumulate one by one.

(3) when the carrier car is loaded, it is intensive to stop, greatly reducing the storage distance of the transmission line, and improving the effective utilization of the line.

(4) the storage section of the car can be set up before the production station, so that the production of the conveyor system has an elastic buffer effect, and it can predict the problems in production, find the weak link, and automatically compensate and adjust.

(5) conveyor system not only can be transported continuously, but also has the functions of automatic recognition, automatic sending, transferring, stopping, positioning, sorting, counting, storing, lifting, loading and unloading, propelling and rotating.

An integral suspension conveyor system usually consists of the following components:

(1) driving device

(2) tensioning device

(3) carrying car (including front car, small and medium-sized car, rear trolley, connecting rod and load beam);

(4) traction chain (split die forging)

(5) sliding frame;

(6) track (including accumulation track, traction rail and bearing rail);

(7) switches (including through switches, bent switches and maintenance switches);

(8) horizontal slewing device (including horizontal rail and horizontal slewing device);

(9) stop, check back, trap.
